The Latitude E6410 is the latest in a long line of business notebooks from Dell. Sporting a wide range of Intel Core processor options, Intel integrated and NVIDIA NVS 3100M dedicated graphics. Dell Latitude E6410 U811P PCMCIA PC Card Slot Blank Dell. $5.00) Write a Review Condition: Refurbished Availability: Same Day Shipping by 3pm CST Weight: 0.75 LBS. The Latitude E6410 also includes 802.11 b/g/n wireless WiFi, FOUR USB ports, VGA out, DisplayPort out, speaker and headphone ports, eSATA, firewire, SDHC-card slot, SmartCard reader, ExpressCard/54 slot, 10/100/1000 ethernet, and 30 day warranty. Dell Latitude E6400 E6410 PCMCIA Card Slot Cage Assembly F104C Product information Package Dimensions 8.74 x 3.15 x 1.34 inches Item Weight 1.41 ounces. Battery connector and SIM card slot. Dell Latitude E6410 motherboard. For more guides, check out the Dell Latitude E6410 device page. Join our plan to get a free laptop part, such as battery, keyboard and more.

• Ratings Breakdown (1-10)

  • • Software & Support
    • 9
  • • Upgrade Capabilities
    • 10
  • • Usability
    • 9
  • • Design
    • 10
  • • Performance
    • 9
  • • Features
    • 9
  • • Price/Value Rating
    • 8

  • • Total Score:
    • 9.14
    • Rating 1 to 10, top score 10

• Pros

  • Good looks and great build quality
  • Super easy to upgrade
  • Good battery life

• Cons

  • ALPS touchpad hiccups
  • Lackluster screen contrast ratio

Quick Take

The Dell Latitude E6410 is a 14.1-inch business notebook configurable with an Intel Core i7 processor and NVIDIA NVS 3100M dedicated graphics.

The Latitude E6410 is the latest in a long line of business notebooks from Dell. Sporting a wide range of Intel Core processor options, Intel integrated and NVIDIA NVS 3100M dedicated graphics, and two display options. In this review we see how this Dell business notebook compares to others already on the market.

Our Dell Latitude E6410 Specifications:

• 14.1 LED-backlit WXGA+ 1440×900 Display
• Windows 7 Professional 64-bit
• Intel Core i7 620M processor (2.66GHz, 4MB cache)
• NVIDIA NVS 3100M Dedicated Graphics with 512MB VRAM
• 4GB DDR3 RAM
• 250GB 7200RPM hard drive (Western Digital Scorpio Black)
• Intel Wireless Wi-Fi 6200AGN
• Built-in Bluetooth v2.1+EDR
• 8X DVD burner
• One-year limited warranty
• 9-cell Li-ion battery (85Wh)
• Weight: 4.26lbs starting (5.5lbs configured)
• Dimensions: 13.2 x 9.4 x 1-1.2-inches
• MSRP: $960 starting ($1,865 closest configuration)

Build and Design
The Dell Latitude E6410 has a very modern look and feel, with a few changes this generation to give a nod towards past models. The E6400 brought the latest body style, with a black alloy shell. The E6410 this time around keeps the body style, but switches back to the gunmetal gray coloring scheme which was found on the D630 and D620 before it. The finish has a pseudo-brushed appearance (painted, not actual brushed metal like on the HP EliteBook) that seems to resist fingerprints more than the real thing. The lower half of the notebook keeps the black metal design, with a large service panel that lets you access everything in the notebook by removing a single screw.

Inside the E6410 the look is matte black on everything besides the keyboard and model lettering. Compared to what you might find in a consumer model, there are no glossy or reflective surfaces besides the small chrome lettering on the Dell branding logo. This is nice if you use your notebook in brightly lit areas where reflections can be distracting. It also means that smudges and fingerprints won’t be a problem from day-to-day use.

Build quality is very good and if feels very durable with the metal panels top and bottom. In the business notebook market not all makers have stuck with metal body panels. After the T60-series ThinkPad, Lenovo switched to a plastic top cover, which has stuck for every generation since then. The HP EliteBook though keeps the metal top cover and retains the image and feel of a higher-grade notebook over a standard plastic consumer model.

The Latitude E6410 chassis felt very well built and resisted any flexing in the usual spots. The palmrest and touchpad showed no signs of sag under heavy prodding. The keyboard directly over the optical drive stayed firm, even though most notebooks do show some signs of weakness in this area. Grabbing the notebook by the palmrest and carrying it around didn’t cause any twisting or creaking noises. With the notebook closed the screen cover gave above average protection for the screen and should prevent any keyboard key marks on from imprinting on the LCD after being transported in a backpack loaded with other items. With the notebook open it took a good amount of pressure applied to the back of the cover before it showed any ripples or distortions on the display.

Dell E6410 Encr Slot

Users looking to upgrade parts of IT staff looking to replacing components will find the Latitude E6410 very easy to service. Dell designed the entire bottom around a single access panel with a single screw holding it in place. After removing the screen (which is retained with a spring so it never gets lost) you simply slide the cover down about a smidge and pop it off. With the cover removed you gain access to the WWAN, Wi-Fi card, memory slots, processor and heatsink, CMOS battery, cooling fan, and the instant-on OS card. Outside of having a cover that removes by the thought of wanting to upgrade alone, the E6410 is probably the easiest notebook we have come across to upgrade.

Ports and Features
The Latitude E6410 is packed with a ton of connections, including three USB 2.0 ports, an eSATA/USB combo port, VGA and DisplayPort-out, audio jacks, LAN, and FireWire-400. Other features include an optical drive, SDHC-card reader, and a SmartCard reader.

Front: SDHC-card slot	Rear: LAN, DisplayPort-out, power jack
Left: Kensington lock slot, VGA-out, one USB 2.0, eSATA/USB, SmartCard reader	Right: ExpressCard/54 slot, FireWire-400, optical drive, audio jacks, wireless on/off, two USB 2.0 ports.

Screen and Speakers
The Dell offers two display options with the 14.1-inch Latitude E6410. The base screen is a WXGA 1280×800 resolution panel, while the step up-which is what our review unit came with-is a WXGA+ 1440×900 panel. Both panel offerings have matte surfaces, instead of the glare-prone glossy displays. The higher resolution lets you display more in the screen and is greatly preferred if you do anything from surfing the web to typing documents. In our tests the screen performed about average in terms of color saturation and contrast, falling behind compared to some of the nicer panels we have seen on consumer notebooks. With our light meter we measured an average contrast ratio of 140:1, which is well below most consumer panels.

This isn’t far from other business notebooks though. Peak brightness measured in at 336nit, which is great for viewing outdoors in partially shaded areas or under bright office lighting. Backlight brightness was even across the panel, with only a 20nit spread between center and the left and right sides. No backlight bleed was seen around the edges or at the corners either. Viewing angles were average, with the vertical viewing range spanning from 15-20 degrees tilted forward or back. Horizontal viewing angles were better, with colors staying true to 60-75 degrees off-center.

The Latitude E6410 features narrow stereo speakers located on each side of the keyboard. For business use they were more than adequate, offering plenty of volume for listening to music in small to midsize rooms. Audio quality was average, with some midrange and good high notes. Bass was lacking, but this was a given without a subwoofer. External outputs include an analog headphone jack, which will work with most external speakers.

Keyboard and Touchpad
The Dell Latitude E6410 has a very comfortable LED backlit keyboard. The keyboard hasn’t changed much from the previous generation, keeping the same look and feel, as well as the built-in pointing stick. The keyboard keys are jet-black with bright white lettering and have minimal cupping. The feel is similar to typing on a Chiclet style keyboard, but the keys don’t have the same sharp cutoff like you might find on those types of keyboards. Typing pressure is minimal, with each press making a very mild click when the key is fully triggered. Compared to my Latitude D630, typing noise has been significantly reduced. Overall compared to the other business notebooks, the E6410’s keyboard stacks up very well, and has an edge when it comes to lighting.

Dell incorporates an ALPS touchpad into the E6410, which has thankfully improved from past years. The moderate amount of lag found in older revisions is completely gone, making the navigation experience much nicer. Sensitivity is great with default settings, although we still had some problems with a tap to drag event not fully releasing of the object you were moving. The touchpad also features two and three-finger gestures for scrolling, zooming, and flicking. With the pointing stick included with the keyboard, the E6410 features two sets of buttons. The top-most buttons for the pointing stick include a middle button which can be configured to control tabs. The buttons are all great to use, with good feedback and a long throw.

Performance and Benchmarks
System performance was great with the 2.66GHz Intel Core i7 processor and NVIDIA NVS 3100M dedicated graphics with 512MB of video memory. Dell offers a wide range of performance options, including two graphics cards options; Intel GMA HD integrated and NVIDIA NVS 3100 dedicated with 512MB of VRAM. Hard drive options include a 5400 and 7200RPM models and a 128GB SSD. Our particular unit came with a 250GB 7200RPM Scorpio Black that was quick to boot and load applications, although not as fast as it might have been with an SSD.

For standard day to day use, the system worked flawlessly loading up web browsers or office productivity applications. For less than business uses, the system was great at playing HD movies, streaming HD video, and even the occasional game or two while the boss isn’t looking. The NVS 3100M graphics card can handle itself well with consumer 3D applications, even though its focus is on business uses. For users who don’t need a dedicated graphics card, or don’t need the highest performance, it would be suggested to just go with Intel GMA HD integrated graphics for best battery life.

wPrime processor comparison results (lower scores mean better performance):

PCMark05 measures overall system performance (higher scores mean better performance):

PCMark Vantage measures overall system performance (higher scores mean better performance):

3DMark06 measures overall graphics performance for gaming (higher scores mean better performance):

CrystalDiskMark storage drive performance test:

Heat and Noise
The Dell Latitude E6410 handled itself pretty well under stress, keeping heavy-contact areas like the palmrest and touchpad reasonable under heavy loads. At its peak, after a heavy run of benchmarks, we recorded a temperature of 96F on the bottom of the notebook. Fan noise during our tests stayed at reasonable levels, with the fan staying off or at a very low speed under a low load, and just above a whisper under a heavy load.

Battery Life
Dell was kind enough to include a higher-capacity 9-cell battery with our review unit, with the standard being a 60Wh 6-cell battery. We were pretty happy with our results, given the higher-end processor and graphics card configuration. With the screen brightness reduced to 70%, wireless on and refreshing a webpage every 60 seconds, and Windows set to the Balanced profile, the Latitude E6410 stayed on for 7 hours and 2 minutes. During the test we measured an average power consumption rate between 10-12 watts.

Conclusion
The Dell Latitude E6410 carries over the same look and feel as the E6400 before it, but it sticks to its roots by going back to the older gunmetal color seen on the D620 and D630 notebooks. Performance wise the Intel Core i7 processor and NVIDIA NVS 3100M graphics performed very well, handling everything that would be expected of a higher-end business notebook.

Build quality is fantastic with metal covers on top and bottom. Users looking to tinker with the insides will be happy to see a very user-friendly access cover, needing only one screw removed to open it up. Overall compared to the HP EliteBook 8440w and Lenovo ThinkPad T410, the Latitude E6410 holds its own and performs quite well. If you are cross shopping between models, it’s hard not to recommend taking a peak at the Latitude E6410 and see if it fits your needs and budget.

Pros:

• Good looks and great build quality
• Super easy to upgrade
• Good battery life

Cons:

• ALPS touchpad hiccups
• Lackluster screen contrast ratio

In this guide, I’ll explain how to disassemble Dell Latitude E6410 to remove the bottom case, hard drive, DVD drive, RAM, keyboard, palm rest, touchpad, wireless card, heat sink, cooling fan, camera, screen, LCD hinge, speaker and motherboard. Refer to this guide. You can upgrade, repair and clean your Latitude E6410.

Want to stay connected to the MyFixGuide.com? Follow us on Facebook to check out the latest teardown news.

Unlock two latches and remove the battery.

The battery has been removed.

It features a 14.8v, 37wh Li-ion battery. Dell P/N: NM631.

The SIM card slot

Remove the screws securing the back cover.

Remove the back cover.

Now you can get access to the RAM, hard drive, wireless card, heat sink and cooling fan.

The laptop installed two Micron 2GB memories.

Samsung 2.5″ 128GB SSD

CMOS battery

Loosen four screws securing the heat sink. You can remove it.

Heat sink and cooling fan

Heat sink P/N: OKTPRC

Dell Latitude E6410 cooling fan P/N: 04H1RR

Disconnect two antennas and remove the screw securing the card.

Intel® Centrino® Ultimate-N 6300 wireless card. Dell P/N: 04W00N.

Dell Latitude E6410 CPU and GPU

Intel® Core™ i5-520M processor (3M Cache, 2.40 GHz)

Remove this screw and pull out the switch. You can pull out the DVD drive.

The laptop comes with a 9.5mm ultra-thin optical drive.

Philips DU-8A3S optical drive

Turn over your laptop. Lift up the keyboard bezel and remove it.

Remove two screws securing the keyboard.

Lift up the keyboard.

Place the keyboard on the palm rest and disconnect the keyboard cable and backlit cable.

The keyboard has been removed.

Remove the screw securing the silver cover.
Remove two covers.

Under the cover, you can find two screws, remove it.

Remove one screw. You can remove the Latitude smart card.

The smart card

The LCD screen module has been removed.

Remove the LCD bezel.
Remove the screws securing the LCD back cover.

Now you can get access to the LCD cable and camera.

Light sensor

Camera

The LED screen

LG LP141WP2-TLB1, resolution: WXGA 1440X900.

Remove three screws securing the palm rest and disconnect three cables. Pry up the palm rest.

Latitude E6410 Encr Slot Drivers

The palm rest has been removed.

Latitude E6410 Encr Slot Software

Remove the screws securing the motherboard.

Battery connector and SIM card slot

Latitude E6410 Encr Slot Price

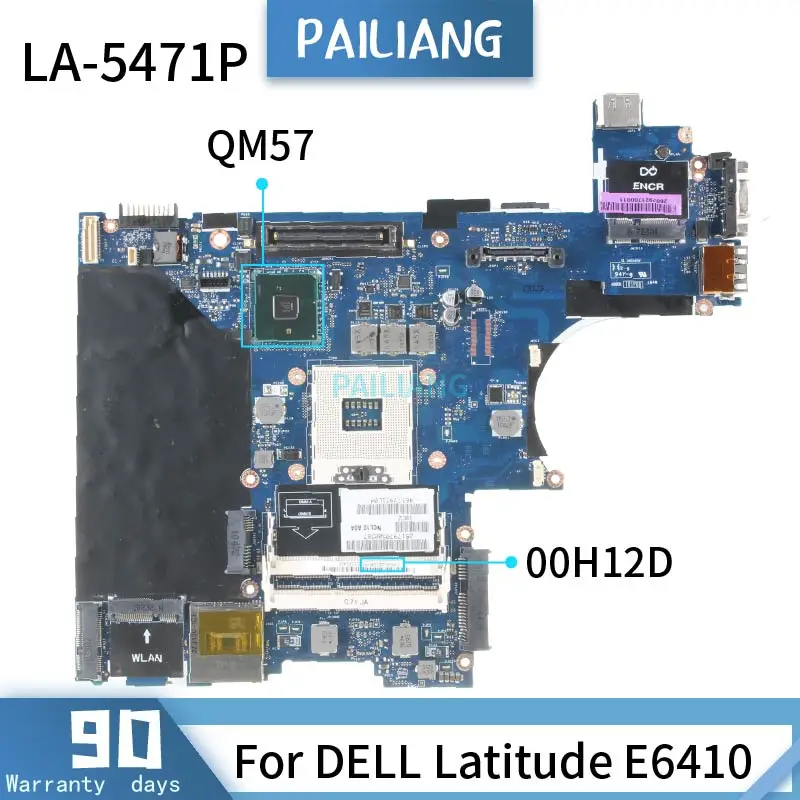

Dell Latitude E6410 motherboard

For more guides, check out the Dell Latitude E6410 device page.
